Overview

This guide dives into leveraging Dwolla’s Open Banking Services in collaboration with Plaid to streamline bank account verification within your Dwolla-powered application. Open banking empowers your users to more securely share their financial data with Dwolla and your application, eliminating the need for manual data entry and improving the overall user experience.

We’ll walk you through the steps to set up and integrate Plaid Instant Account Verification (Plaid IAV) using Dwolla’s Exchange Sessions API. Dwolla’s powerful Exchange Sessions API acts as the bridge between your application and Plaid’s Open Banking API. This established connection facilitates real-time verification of your user’s bank account details.

To gain hands-on experience, we recommend following along with the provided integration-examples sample app, which provides a practical understanding of the integration process for your own application.

Instant Account Verification (IAV)

Instant Account Verification (IAV) is a one-time process that verifies the bank account being added by an end user is open and active. At the end of this guide, you’ll obtain a Funding Source URL, which is a unique identifier that represents a bank account being used for account-to-account (A2A) payments.

Prerequisites

Before starting the integration, make sure you have completed the following prerequisites:

Dwolla Account: Set up a Dwolla production or sandbox account.
Create a Customer: Create a customer in your Dwolla account if you haven’t already done so. Check out the Dwolla Create a Customer API documentation for guidance.

Note: You do not need a Plaid account or contract with Plaid to leverage Plaid via Dwolla’s Open Banking Services. Dwolla handles the integration with Plaid for you, simplifying the process.

Sandbox Testing

Testing in the sandbox environment is essential before deploying Plaid Open Banking in production. The sandbox allows you to validate functionality with test data, ensuring a smooth experience for live users.

Test Credentials for Plaid Link Flow

Use the following credentials to simulate successful authentication with test banks:

Username: user_good
Password: pass_good

Returning User Testing in Sandbox

Plaid’s Sandbox includes pre-seeded test users for validating different returning user scenarios. Use the phone numbers and OTP (always 123456) below to simulate these cases:

Scenario	Phone Number
New User	415-555-0010
Verified Returning User	415-555-0011
Verified Returning User: Linked New Account	415-555-0012
Verified Returning User: Linked OAuth Bank	415-555-0013
Verified Returning User + New Device	415-555-0014
Verified Returning User: Auto Account Select	415-555-0015

Key Notes About Plaid Test Banks

Plaid offers two test banks: one for checking accounts and one for savings accounts. Both have predefined account and routing numbers. This means:

You can add up to two banks per (one checking, one savings).
To test additional banks, remove an existing funding source and repeat the Plaid Link flow.

Plaid SDKs for Account Authentication

Plaid Link serves as the front-end widget for Plaid IAV, enabling users to securely authenticate and link their bank accounts. This widget can be seamlessly embedded into your application using one of Plaid’s Link client SDKs.

In this guide, we’ll be using the react-plaid-link package, which is specifically designed for React web applications. It simplifies the integration of Plaid Link by providing a React hook to handle initialization and user interactions with the widget.

If you’re using a different framework or platform, Plaid offers SDKs tailored to various environments from which you can select the appropriate package for your application infrastructure.

Demo

Plaid Open Banking Demo

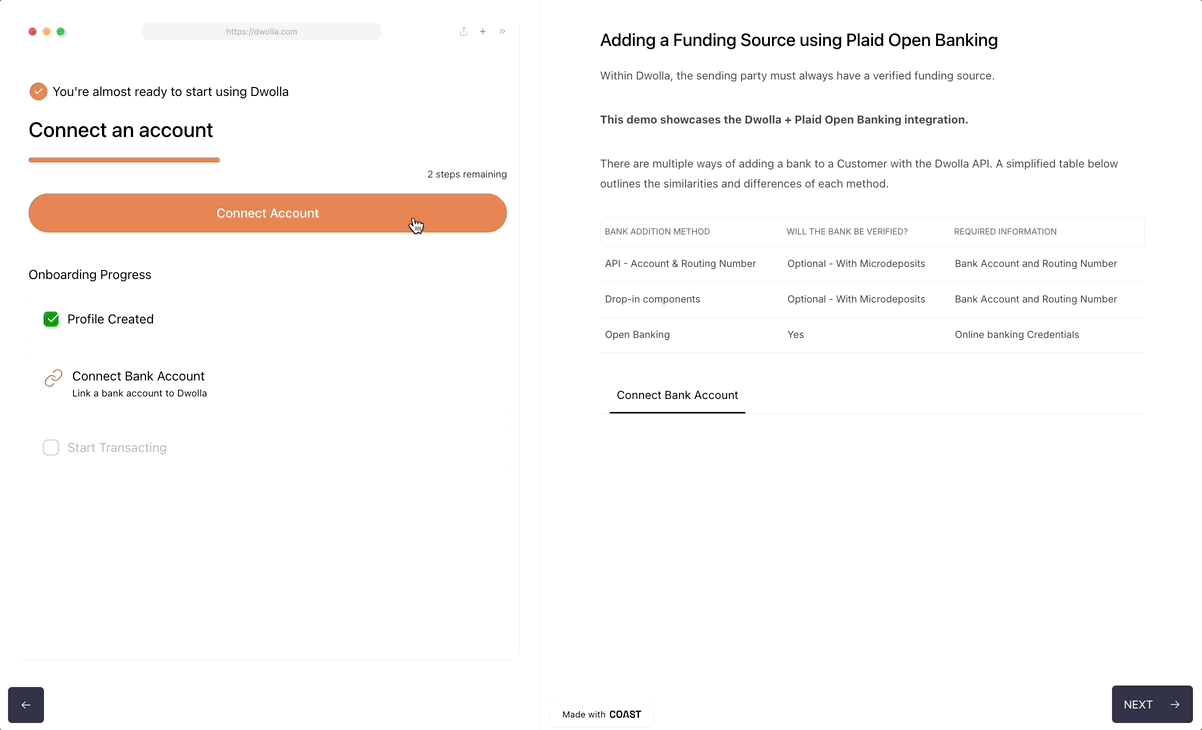

Coast Demo: Plaid Open Banking Flow

Integration Steps

Step 1 - Initiate Exchange Session with Plaid

To begin, you will create an exchange session for your Customer in Dwolla using the Exchange Sessions API. This session will specify Plaid as the exchange partner. The Exchange Partner ID for Plaid can be found by calling the List Exchange Partners API endpoint.

About the redirect-url Field:

If have an Android and/or iOS app, you must include a platform-specific redirect-url in the request body when creating an exchange session. This URL determines where the user is redirected after completing the Plaid Link flow. The redirect-url is a required field only for Android and iOS apps. It is not needed for web-based implementations.

For Android, use the Android package name as the redirect-url value (e.g., com.example.app123).
For iOS, use a valid HTTP or HTTPS URL (e.g., https://example.com/app123) that can handle redirects in the app.

Dwolla will validate the provided redirect-url based on these conventions and send the appropriate value to Plaid. If the redirect-url does not start with a valid protocol (https:// or http://), it will be assumed to be an Android package name.

Exchange Sessions are single-use. Once a user starts the IAV flow initiated by creation of a session, it becomes invalid and cannot be reused.

Example: Initiating an Exchange Session via Dwolla API

import { Client } from "dwolla-v2";

const dwolla = new Client({
  key: "YOUR_KEY",
  secret: "YOUR_SECRET",
  environment: "sandbox", // or 'production'
});

// Retrieve Plaid's exchange partner href
export async function getExchangePartnerHref(): Promise<string> {
  const response = await dwolla.get("/exchange-partners");

  const partnersList = response.body._embedded["exchange-partners"];

  return partnersList.find(
    (partner: { name: string }) => partner.name.toLowerCase() === "plaid"
  )._links.self.href;
}

// Create an exchange session for a Customer
export async function createExchangeSession(
  customerId: string
): Promise<string> {
  const exchangePartnerHref = await getExchangePartnerHref();

  const requestBody = {
    _links: {
      "exchange-partner": { href: exchangePartnerHref },
    },
  };

  const response = await dwolla.post(
    `customers/${customerId}/exchange-sessions`,
    requestBody
  );

  return response.headers.get("location"); // URL of the exchange session
}

// Example usage
const exchangeSessionUrl = await createExchangeSession("your-customer-id");
console.log("Exchange session URL:", exchangeSessionUrl); // => Exchange session URL: https://api.dwolla.com/exchange-sessions/fcd15e5f-8d13-4570-a9b7-7fb49e55941d

POST https://api.dwolla.com/customers/74a207b2-b7b7-4efa-8bf8-582148e7b980/exchange-sessions
Accept: application/vnd.dwolla.v1.hal+json
Content-Type: application/vnd.dwolla.v1.hal+json
Authorization: Bearer pBA9fVDBEyYZCEsLf/wKehyh1RTpzjUj5KzIRfDi0wKTii7DqY

{
  "_links": {
    "exchange-partner": {
      "href": "https://api.dwolla.com/exchange-partners/f53ffb32-c84f-496a-9d9d-acd100d396ef"
    }
  }
}

HTTP/1.1 201 Created
Location: https://api.dwolla.com/exchange-sessions/fcd15e5f-8d13-4570-a9b7-7fb49e55941d

Example Request: Android

POST https://api.dwolla.com/customers/74a207b2-b7b7-4efa-8bf8-582148e7b980/exchange-sessions
Accept: application/vnd.dwolla.v1.hal+json
Content-Type: application/vnd.dwolla.v1.hal+json
Authorization: Bearer pBA9fVDBEyYZCEsLf/wKehyh1RTpzjUj5KzIRfDi0wKTii7DqY


{
  "_links": {
    "exchange-partner": {
      "href": "https://api.dwolla.com/exchange-partners/f53ffb32-c84f-496a-9d9d-acd100d396ef"
    },
    "redirect-url": {
      "href": "com.example.app123"
    }
  }
}

Example Request: iOS

POST https://api.dwolla.com/customers/74a207b2-b7b7-4efa-8bf8-582148e7b980/exchange-sessions
Accept: application/vnd.dwolla.v1.hal+json
Content-Type: application/vnd.dwolla.v1.hal+json
Authorization: Bearer pBA9fVDBEyYZCEsLf/wKehyh1RTpzjUj5KzIRfDi0wKTii7DqY


{
  "_links": {
    "exchange-partner": {
      "href": "https://api.dwolla.com/exchange-partners/f53ffb32-c84f-496a-9d9d-acd100d396ef"
    },
    "redirect-url": {
      "href": "https://example.com/app123"
    }
  }
}

Step 2 - Retrieve Exchange Session and Complete Plaid Link Flow

After creating the exchange session, retrieve the session details from Dwolla to obtain the Plaid Link Token. This token initializes the Plaid Link flow on the front end, where the Customer authenticates their bank account through Plaid’s secure interface. Once the flow is successfully completed, the onSuccess handler captures the publicToken returned by Plaid, which can be used for subsequent operations like creating an exchange.

Code Example

Backend - Backend: Retrieve Plaid Link Token

// Retrieve exchange session by ID

export async function getPlaidExchangeSession(
  exchangeSessionId: string
): Promise<string> {
  const response = await dwolla.get(`/exchange-sessions/${exchangeSessionId}`);

  return response.body.externalProviderSessionToken; // Plaid Link Token
}

// Example usage:

const plaidLinkToken = await getPlaidExchangeSession(
  "your-exchange-session-id"
);

console.log("Plaid Link Token:", plaidLinkToken); // => Plaid Link Token: link-production-b41e8ed3-0874-4c64-b07d-a77088979d5f

GET https://api.dwolla.com/exchange-sessions/fcd15e5f-8d13-4570-a9b7-7fb49e55941d
Accept: application/vnd.dwolla.v1.hal+json
Authorization: Bearer pBA9fVDBEyYZCEsLf/wKehyh1RTpzjUj5KzIRfDi0wKTii7DqY

...
{
    "created": "2024-11-18T18:48:11.357Z",
    "_links": {
        "self": {
            "href": "https://api.dwolla.com/exchange-sessions/ca80ecc6-9204-4e1c-9a2d-a78fa3c08933",
            "type": "application/vnd.dwolla.v1.hal+json",
            "resource-type": "exchange-sessions"
        },
        "exchange-partner": {
            "href": "https://api.dwolla.com/exchange-partners/f53ffb32-c84f-496a-9d9d-acd100d396ef",
            "type": "application/vnd.dwolla.v1.hal+json",
            "resource-type": "exchange-partner"
        }
    },
    "externalProviderSessionToken": "link-production-b41e8ed3-0874-4c64-b07d-a77088979d5f"
}

Frontend - Initialize and Handle Plaid Link Flow (using React)

import { usePlaidLink } from "react-plaid-link";

const plaidLinkToken = "your-session-link-token"; // Replace with the actual link token from the exchange session

const { open, ready } = usePlaidLink({
  token: plaidLinkToken,

  onSuccess: (publicToken) => {
    // Public token is retrieved here. This will be used when creating an exchange

    console.log("Plaid Public Token:", publicToken);
  },

  onExit: () => {
    console.log("User exited the Plaid Link flow.");
  },
});

Step 3 - Create Exchange with Plaid Public Token

After successfully completing the Plaid Link flow and retrieving the public token, create an resource in the Dwolla API by passing the public token returned by Plaid. This creates an “exchange” representing the link between the Dwolla Customer and their external bank account.

Example: Create Exchange Resource in Dwolla

// Create an exchange for a Dwolla customer using Plaid's public token

export async function createExchange(
  customerId: string,
  plaidPublicToken: string
): Promise<string> {
  const exchangePartnerHref = await getExchangePartnerHref(); // Retrieve Plaid's exchange partner href

  const requestBody = {
    _links: {
      "exchange-partner": { href: exchangePartnerHref },
    },

    plaid: {
      publicToken: plaidPublicToken,
    },
  };

  const response = await dwolla.post(
    `customers/${customerId}/exchanges`,
    requestBody
  );

  return response.headers.get("location"); // URL of the created exchange
}

// Example usage

const exchangeUrl = await createExchange(
  "your-customer-id",
  "your-plaid-public-token"
);

console.log("Exchange URL:", exchangeUrl); // => Exchange URL: https://api.dwolla.com/exchanges/73463f82-3f9f-499f-a0ae-630c0808e09f

POST https://api.dwolla.com/customers/74a207b2-b7b7-4efa-8bf8-582148e7b980/exchanges
Accept: application/vnd.dwolla.v1.hal+json
Content-Type: application/vnd.dwolla.v1.hal+json
Authorization: Bearer pBA9fVDBEyYZCEsLf/wKehyh1RTpzjUj5KzIRfDi0wKTii7DqY

{
    "_links": {
        "exchange-partner": {
            "href": "https://api.dwolla.com/exchange-partners/f53ffb32-c84f-496a-9d9d-acd100d396ef"
        }
    },
    "plaid": {
      "publicToken": "public-production-d5456acb-01d5-4932-9783-e4c883cf1c0c"
    }
}

HTTP/1.1 201 Created
Location: https://api.dwolla.com/exchanges/fcd15e5f-8d13-4570-a9b7-7fb49e55941d

Step 4 - Create Funding Source

After successfully creating the exchange, create a funding source for the Customer. This involves calling Dwolla’s Create a Funding Source endpoint, where you’ll provide the exchange resource obtained from the previous step.

In the following function, once a response is received, it will extract the Location header value, which is the fully-qualified URL specifying the resource location of the Customers’s funding source.

Example: Create Funding Source in Dwolla

// Creates a funding source for a customer.

export async function createFundingSource(
  customerId: string,
  exchangeId: string,
  name: string,
  type: string
): Promise<string> {
  const exchangeUrl = `https://api.dwolla.com/exchanges/${exchangeId}`;

  const requestBody = {
    _links: {
      exchange: {
        href: exchangeUrl,
      },
    },

    bankAccountType: type,

    name: name,
  };

  const response = await dwolla.post(
    `customers/${customerId}/funding-sources`,
    requestBody
  );

  const location = response.headers.get("location");

  return location; // URL of the created funding source
}

// Example usage:

const fundingSourceUrl = await createFundingSource(
  "your-customer-id",
  "your-exchange-id",
  "Your Funding Source Name",
  "checking"
);

console.log("Funding Source URL:", fundingSourceUrl); // => Funding Source URL: https://api.dwolla.com/funding-sources/f41ab99c-7748-4f84-a3ed-3f669c002f4f

POST https://api.dwolla.com/customers/99bfb139-eadd-4cdf-b346-7504f0c16c60/funding-sources
Content-Type: application/vnd.dwolla.v1.hal+json
Accept: application/vnd.dwolla.v1.hal+json
Authorization: Bearer pBA9fVDBEyYZCEsLf/wKehyh1RTpzjUj5KzIRfDi0wKTii7DqY
{
  "_links": {
    "exchange": {
      "href": "https://api.dwolla.com/exchanges/6bc9109a-04fd-49b6-ace6-ca06fd282d65"
    }
  },
  "bankAccountType": "checking",
  "name": "Jane Doe - Checking"
}

HTTP/1.1 201 Created
Location: https://api.dwolla.com/funding-sources/AB443D36-3757-44C1-A1B4-29727FB3111C

Handling Re-authentication

When Customers initially connect their bank account via Instant Account Verification, they authenticate their bank account with Plaid and grant permission to access their account information. This allows Dwolla to perform actions like checking bank balances. However, this access can be interrupted by changes made by the Customer, such as if the Customer updates their bank password, multi-factor authentication method or revokes consent to access their account information.

To maintain a smooth user experience, your application needs to handle these scenarios gracefully. Dwolla’s API provides an UpdateCredentials error response to signal when a Customer’s bank connection needs to be refreshed. Additionally, Dwolla will also send a customer_exchange_reauth_required webhook denoting whether an exchange is pending deactivation, or a customer_exchange_deactivated webhook denoting that an exchange has been deactivated and requires re-authentication.

`UpdateCredentials` error response

{
    "code": "UpdateCredentials",
    "message": "Re-authentication is required in order to access account data. Please initiate the exchange session flow to regain access.",
    "_links": {
        "about": {
            "href": "https://api.dwolla.com/exchanges/036c8a60-fa45-45d4-8f5d-181d348c6ec8/exchange-sessions",
            "type": "application/vnd.dwolla.v1.hal+json",
            "resource-type": "exchange-session"
        }
    }
}

Steps to manage re-authentication

Detect the UpdateCredentials error: When making calls to Dwolla’s API (e.g., checking a bank balance), implement error handling to catch the UpdateCredentials response, which is an HTTP 400 error.
Communicate with your Customer: It’s crucial to inform the Customer why they need to re-authenticate and how to do so. Use clear and concise language in in-app messages, emails or text messages to guide them back to your application to complete the process.
Initiate the re-authentication flow: Upon receiving this error, redirect the Customer to re-authenticate their bank account. This is done by creating a new re-authentication exchange session. This will guide the Customer through the necessary steps to re-establish their bank connection.

By following these steps, you can ensure that your application can handle interruptions to bank connections effectively, providing a smooth and user-friendly experience.

Initiate re-authentication exchange-session

Use Dwolla’s API endpoint to create a re-authentication exchange session, which initiates an Exchange Session for a Customer. While an optional redirect URL can be specified in the request body, it’s not required.

Example using Dwolla Node SDK

Example: Re-Authenticate an Exchange in Dwolla

import { Client } from "dwolla-v2";
const dwolla = new Client({
  key: "YOUR_KEY",
  secret: "YOUR_SECRET",
  environment: "production", // or 'sandbox'
});

/**
 * Creates a re-auth exchange session for a customer
 * @param exchangeId - The ID of the deactivated exchange to complete the re-authentication process.
 */

export async function initiateReauthentication(exchangeId: string) {
  const requestBody = {};
  try {
    const response = await dwolla.post(
      `exchanges/${exchangeId}/exchange-sessions`,
      requestBody
    );
    const location = response.headers.get("location");
    return location;
  } catch (error) {
    // Return an error message or handle the error appropriately
  }
}

// Example usage:

const reauthExchangeSessionUrl = initiateReauthentication(exchangeId); // => https://api.dwolla.com/exchange-sessions/fcd15e5f-8d13-4570-a9b7-7fb49e55941d

POST https://api.dwolla.com/exchanges/74a207b2-b7b7-4efa-8bf8-582148e7b980/exchange-sessions
Accept: application/vnd.dwolla.v1.hal+json
Content-Type: application/vnd.dwolla.v1.hal+json
Authorization: Bearer pBA9fVDBEyYZCEsLf/wKehyh1RTpzjUj5KzIRfDi0wKTii7DqY

...

HTTP/1.1 201 Created
Location: https://api.dwolla.com/exchange-sessions/fcd15e5f-8d13-4570-a9b7-7fb49e55941d

Example Request: Android

POST https://api.dwolla.com/exchanges/74a207b2-b7b7-4efa-8bf8-582148e7b980/exchange-sessions
Accept: application/vnd.dwolla.v1.hal+json
Content-Type: application/vnd.dwolla.v1.hal+json
Authorization: Bearer pBA9fVDBEyYZCEsLf/wKehyh1RTpzjUj5KzIRfDi0wKTii7DqY


{
  "_links": {
    "redirect-url": {
      "href": "com.example.app123"
    }
  }
}

Example Request: iOS

POST https://api.dwolla.com/exchanges/74a207b2-b7b7-4efa-8bf8-582148e7b980/exchange-sessions
Accept: application/vnd.dwolla.v1.hal+json
Content-Type: application/vnd.dwolla.v1.hal+json
Authorization: Bearer pBA9fVDBEyYZCEsLf/wKehyh1RTpzjUj5KzIRfDi0wKTii7DqY


{
  "_links": {
    "redirect-url": {
      "href": "https://example.com/app123"
    }
  }
}

Resources

Overview Visa: Instant Account Verification

On this page

Overview
Instant Account Verification (IAV)
Prerequisites
Sandbox Testing
Test Credentials for Plaid Link Flow
Returning User Testing in Sandbox
Key Notes About Plaid Test Banks
Plaid SDKs for Account Authentication
Demo
Integration Steps
Step 1 - Initiate Exchange Session with Plaid
Step 2 - Retrieve Exchange Session and Complete Plaid Link Flow
Code Example
Step 3 - Create Exchange with Plaid Public Token
Step 4 - Create Funding Source
Handling Re-authentication
Steps to manage re-authentication
Initiate re-authentication exchange-session
Example using Dwolla Node SDK
Resources

Introduction

Getting Started

Quickstarts

Customers

Funding Sources

Transfers

Integrations

Webhooks & Notifications

​Overview

​Instant Account Verification (IAV)

​Prerequisites

​Sandbox Testing

​Test Credentials for Plaid Link Flow

​Returning User Testing in Sandbox

​Key Notes About Plaid Test Banks

​Plaid SDKs for Account Authentication

​Demo

Plaid Open Banking Demo

​Integration Steps

​Step 1 - Initiate Exchange Session with Plaid

Example: Initiating an Exchange Session via Dwolla API

Example Request: Android

Example Request: iOS

​Step 2 - Retrieve Exchange Session and Complete Plaid Link Flow

​Code Example

Backend - Backend: Retrieve Plaid Link Token

Frontend - Initialize and Handle Plaid Link Flow (using React)

​Step 3 - Create Exchange with Plaid Public Token

Example: Create Exchange Resource in Dwolla

​Step 4 - Create Funding Source

Example: Create Funding Source in Dwolla

​Handling Re-authentication

UpdateCredentials error response

​Steps to manage re-authentication

​Initiate re-authentication exchange-session

​Example using Dwolla Node SDK

Example: Re-Authenticate an Exchange in Dwolla

Example Request: Android

Example Request: iOS

​Resources

Overview

Instant Account Verification (IAV)

Prerequisites

Sandbox Testing

Test Credentials for Plaid Link Flow

Returning User Testing in Sandbox

Key Notes About Plaid Test Banks

Plaid SDKs for Account Authentication

Demo

Integration Steps

Step 1 - Initiate Exchange Session with Plaid

Step 2 - Retrieve Exchange Session and Complete Plaid Link Flow

Code Example

Step 3 - Create Exchange with Plaid Public Token

Step 4 - Create Funding Source

Handling Re-authentication

`UpdateCredentials` error response

Steps to manage re-authentication

Initiate re-authentication exchange-session

Example using Dwolla Node SDK

Resources
